433MHz 1W Star Network SMD Wireless Module

[IC]:CC1310

[Frequency]:433.3MHz ~ 434.5MHz

[Power]:30dBm

[Distance]:6.5km

[Interface]:UART

[Weight]:4.9±0.1g

[Introduction]:E70-433NW30S is the star network module, operating at
433MHz, based on originally imported TI CC1310 and 15.4-Stackprotocol, with coordinator and terminal as a whole. The module features with long range and high-speed transmission modes. Maximum 200 nodes can send data to one coordinator.

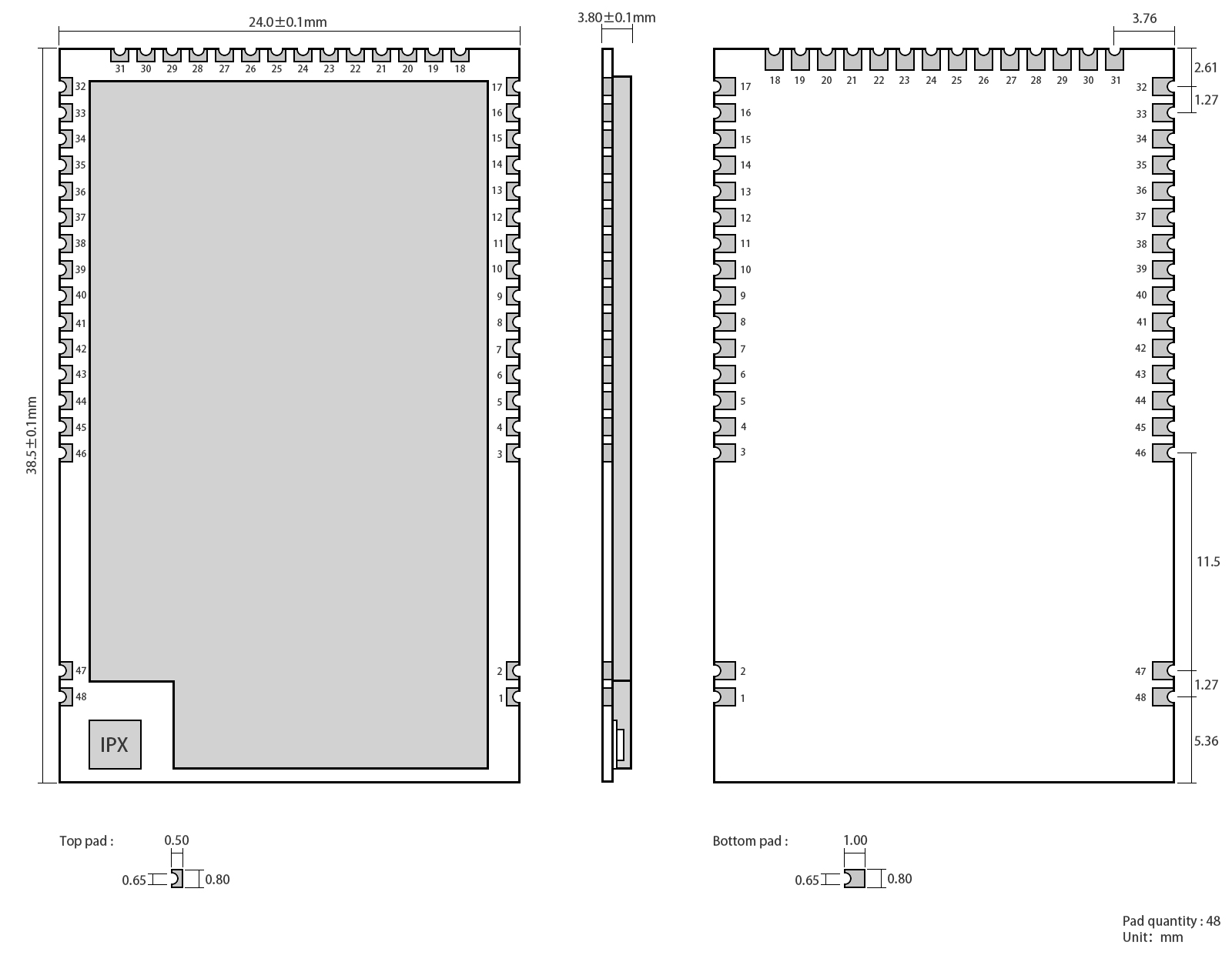

1
Pin No Pin item Pin direction Pin application
1 GND Ground Ground electrode
2 GND Ground Ground electrode
3 GND Ground Ground electrode
4 NC Reserved pin Reserved, to be floated
5 NC Reserved pin Reserved, to be floated
6 NC Reserved pin Reserved, to be floated
7 NC Reserved pin Reserved, to be floated
8 NC Reserved pin Reserved, to be floated
9 NC Reserved pin Reserved, to be floated
10 NC Reserved pin Reserved, to be floated
11 NC Reserved pin Reserved, to be floated
12 NC Reserved pin Reserved, to be floated
13 NC Reserved pin Reserved, to be floated
14 NC Reserved pin Reserved, to be floated
15 NC Reserved pin Reserved, to be floated
16 LINK Output For indicating the current network connection status of the module, it can be configured as drain open circuit output or push-pull output. For details, please refer to the parameter setting, a 1K protection resistor shall be connected in series externally (it can be suspended).
17 GND Ground Ground electrode
18 NC Reserved pin Reserved, to be floated
19 NC Reserved pin Reserved, to be floated
20 NC Reserved pin Reserved, to be floated
21 NC Reserved pin Reserved, to be floated
22 TCKC Input JTAG TCKC
23 TMSC Input JTAG TMSC
24 RESET Input Module reset pin, low level effective
25 NC Reserved pin Reserved, to be floated
26 M0 Input M1M0 The four working modes of the module are determined by the joint combination. When in use, a 1K protection resistor shall be connected in series externally, and a 1M pull-up resistor shall be added (it shall not be suspended,otherwise, it can be grounded).
27 M1 Input M1M0 The four working modes of the module are determined by the joint combination. When in use, a 1K protection resistor shall be connected in series externally, and a 1M pull-up resistor shall be added (it shall not be suspended,
otherwise, it can be grounded).
28 VCC - Power supply :2.6V ~ 5.5V DC
29 VCC - Power supply :2.6V ~ 5.5V DC
30 GND Ground Ground electrode
31 GND Ground Ground electrode
32 ACK Input The user indicates the data transmission result of the module, which is pulled down before transmission and pulled up after success. It can be configured as drain open circuit output or push-pull output. When it is used, a 1K protection resistor should be connected externally in series (it can be suspended).
33 NC Reserved pin Reserved, to be floated
34 NC Reserved pin Reserved, to be floated
35 NC Reserved pin Reserved, to be floated
36 RXD Input TTL UART inputs, connects to external (MCU, PC) TXD output pin. Can be configured as open-drain or pull-up input.
37 TXD Output TTL UART outputs, connects to external RXD (MCU, PC) input pin. Can be configured as open-drain or push-pull output
38 AUX Output To indicate module ’ s working status & wakes up the external MCU. During the procedure of self-check initialization, the pin outputs low level. Can be configured as push-pull output (suspending is allowed).
39 NC Reserved pin Reserved, to be floated
40 NC Reserved pin Reserved, to be floated
41 NC Reserved pin Reserved, to be floated
42 TX_EN Output Internal single chip microcomputer control PA pin, high level effective,connected 45 pin
43 RX_EN Output Internal single chip microcomputer control LNA pin, high level effective,connected 44 pin
44 RX_EN Input Internal single chip microcomputer control LNA pin, high level effective,connected 43 pin
45 TX_EN Input Internal single chip microcomputer control PA pin, high level effective,connected 42 pin
46 GND Ground Ground electrode
47 GND Ground Ground electrode
48 ANT - Antenna 50 ohm impedance
