Ebyte high quality UART wireless modules for meter reading smart home smart agriculture industrial control
[IC]：SX1278
[Frequency]：410~525MHz
[Power]：10~20dBm
[Distance]：3km
[Interface]：UART
[Weight]：2.1±0.1g
[Introduction]：E32 series are UART wireless modules based on SX1276/SX1278 RF IC of SEMTECH with transparent transmission and LoRa spread spectrum technology. The modules 3.3V TTL output. SX1276/SX1278 support LoRa TM technology, The LoRa TM DSSS (direct sequence spread spectrum) technology features long range and strong anti-interference as well as strong data confidentiality. SX1276/SX1278 are considered as a milestone in terms of low speed data communication.

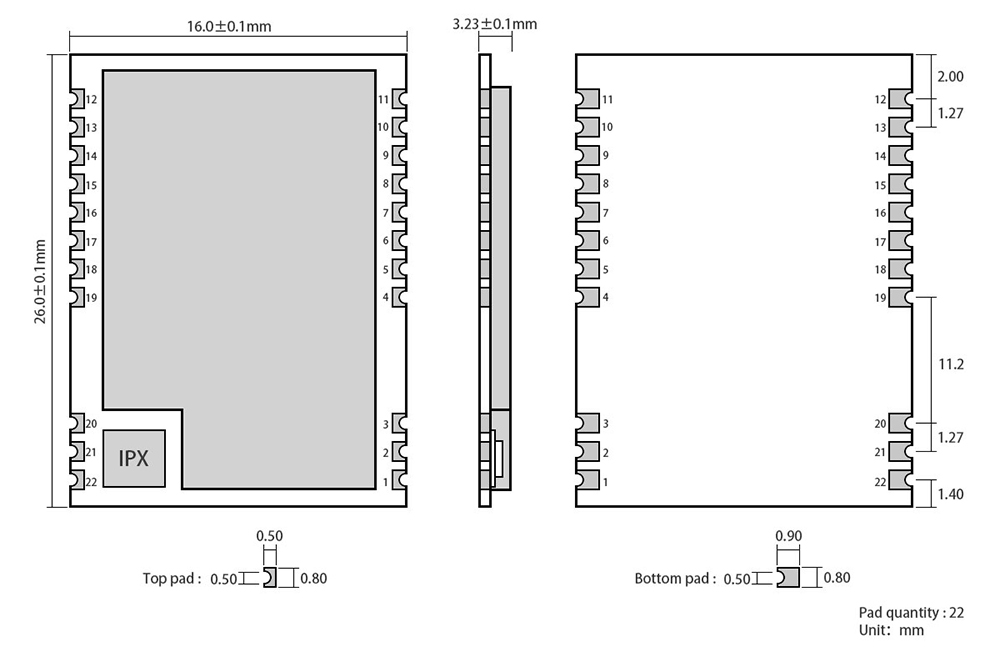

| Pin No. | Pin Item | Pin Direction | Pin Application |
|---|---|---|---|
| 1 | GND | - | Ground |
| 2 | GND | - | Ground |
| 3 | GND | - | Ground |
| 4 | GND | - | Ground |
| 5 | M0 | Input(weak pull-up) | Work with M1 & decide the four operating modes;Floating is not allowed, can be ground. |
| 6 | M1 | Input(weak pull-up) | Work with M0 & decide the four operating modes;Floating is not allowed, can be ground. |
| 7 | RXD | Input | TTL UART inputs, connects to external TXD output pin;Can be configured as open-drain or pull-up input. |
| 8 | TXD | Output | TTL UART outputs, connects to external RXD input pinCan be configured as open-drain or push-pull output. |
| 9 | AUX | Output | To wake up the external MCU, during the procedure of self-check initialization, the pin outputs low level; Can be configured as open-drain output or push-pull output; Floating is allowed. |
| 10 | VCC | - | Voltage positive reference of module; Power supply 2.3V ~ 5.2V DC |
| 11 | GND | - | Ground |
| 12 | NC | - | - |
| 13 | GND | - | Ground |
| 14 | NC | - | - |
| 15 | NC | - | - |
| 16 | NC | - | - |
| 17 | NC | - | - |
| 18 | NC | - | - |
| 19 | GND | - | Ground |
| 20 | GND | - | Ground |
| 21 | ANT | - | Antenna |
| 22 | GND | - | Ground |
